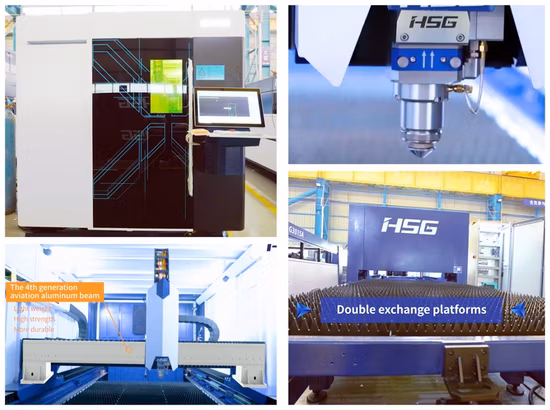

HSG G3015X 6kW

Machinery Types / HSG / Laser Cutting Machines

Product Description

Technical Parameter	GX
Model	G3015X 6kW
Power	6000W (pls contact us choose 3kw/12kw/20kw)
Processing Format (L*W)	3048*1524mm
X/Y-axis Positioning Accuracy	±0.03mm/m
X/Y-axis Repositioning Accuracy	±0.03mm
Acceleration	1.5G
No-load Speed	140m/min
Loading Weight	900kg
Overall Dimensions (LWH)	890022602200mm

Machine Specifications

Table Length: 3000 mm
Table Width: 1500 mm
Burner Heads: 1
Control: CNC
Workpiece Weight Capacity: 800 kg
Traversing Speed: 140 m/min
Total Power Requirement: 42.5 kW
Machine Dimensions (L × W × H): ca. 10050 × 4920 × 2200 mm
Model: Ljb Sajun Um Sjf Uinsrr

Better Quality and Faster Cuts with Perfect Equipments

High Sensitivitive and Perfect Bending Combinations

Cutting Capacity

Features & Components

Machine Axes: 4 (X, Y, Z, U)
Cutting Head: Precitec ProCutter
CAD/CAM Software: Lantek Expert Cut
4 servo motors for all axial movements
CNC control panel with 15.5” touch screen
IPG laser sources and coolers integrated
Precitec ProCutter cutting head system
Compressed air filter (air filter)
Conveyor belt under cutting area
Compressed air filter (air filter)
Closed housing with specially coated filter-protection windows
Loading / discharging system
Proportional gas and pipe system
