| Manufacturer | DENER |
|---|---|
| Model | Puma XL 220-36 Hydraulic Press Brake |
| Condition | New |
| Stock Number | 25 |
| Model Number | 220 - 36 |
| Status | For Sale |
| Type | Hydraulic |
| Tonnage | 242 T |
| Bending Length | 3650 mm |
| Bending Capacity | 220 ton |
Dener PUMA XL CNC Press Brakes are born with the aim of being flexible, reliable, and advanced bending machines; During their production, our company uses the strictest manufacturing technologies to achieve the highest quality. Based on a proven design, Dener has increased the working speed, the capacity in the strokes and the daylights and the folding accuracy of the Puma XL machines.

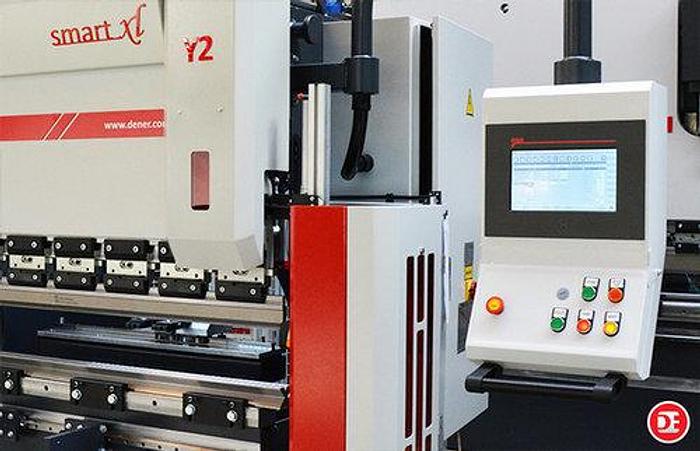

DENER PUMA XL is a synchronized hydraulic press brake with a 3D graphical CNC controller and offers easy machine operation and setup, simple and fast 3D of numerical parts programming, and auto calculation of the bend sequence. The 3D and DXF programming features with ESA S 660 W controller provides more possibilities to end users to increase their production. These functions make Dener PUMA XL CNC Hydraulic Press Brakes very popular in the metal forming industries.
| Manufacturer | DENER |
|---|---|
| Capacity: | 242 US Tons / 220 Metric Tons |
| Ram Repeatability: | ±0.0004 in / ±0.01 mm |
| Approach Speed (Max): | 5.5 IPS / 140 mm/s |
| Bend Speed (Max): | 0.4 IPS / 10 mm/s |
| Return Speed (Max): | 5.1 IPS / 130 mm/s |
| Punch Holder Height: | 23.6 in / 600 mm |
| Back Gauge Speed: | 295 IPM / 125 mm/s |
| Back Gauge Repeat Accuracy: | 0.002 in / 0.05 mm |
| Back Gauge X Travel: | 29.6 in / 750 mm |
| Max Back Gauge Position: | 40 in / 1015 mm |
| R Axis Travel: | 9.8 in / 250 mm |
| Bending Length: | 143 in / 3650 mm |
| Distance Between Frames: | 122 in / 3100 mm |
| Ram Stroke: | 13.75 in / 350 mm |
| Daylight (without punch holders): | 23.6 in / 600 mm |
| Throat Depth: | 17.7 in / 450 mm |
| Table Height: | 36.22 in / 920 mm |
| Table Width: | 3.74 in / 95 mm |
| Weight: | 27,610 lbs / 12,550 kg |
