Manufacturer | DENER |
---|---|
Model | DDM 80-25 Servo electric Press Brake |
Condition | New |
Model Number | 80 - 25 |
X/Y-axis Positioning Accuracy | ±0.03mm/m |
Status | For Sale |
Type | Electric |
Tonnage | 88 T |
Bending Length | 100" |
Bending Length: 2550 mm
Capacity: 80 t

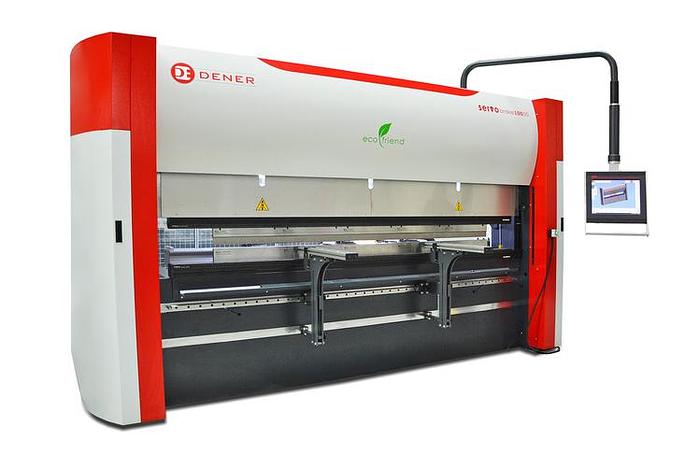

Dener CNC Servo Electric Press Brakes are non-hydraulic, flexible, reliable, and advanced bending machines. This next-generation design combines eco-friendly operation with productivity, accuracy, flexibility, and reliability. The new concept offers low power consumption, less maintenance, and no hydraulic oil requirement.

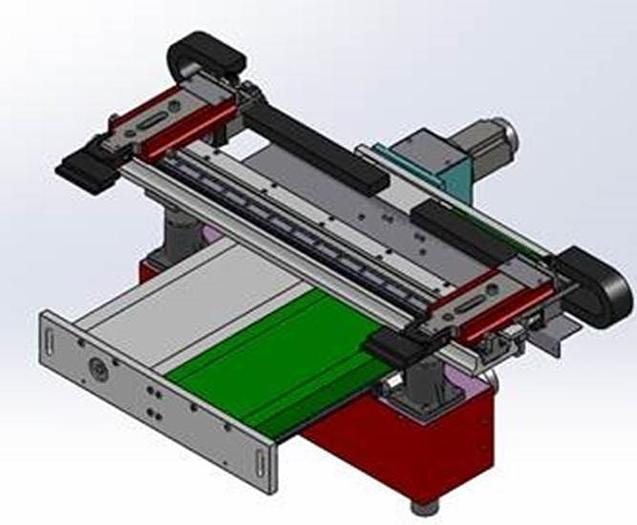

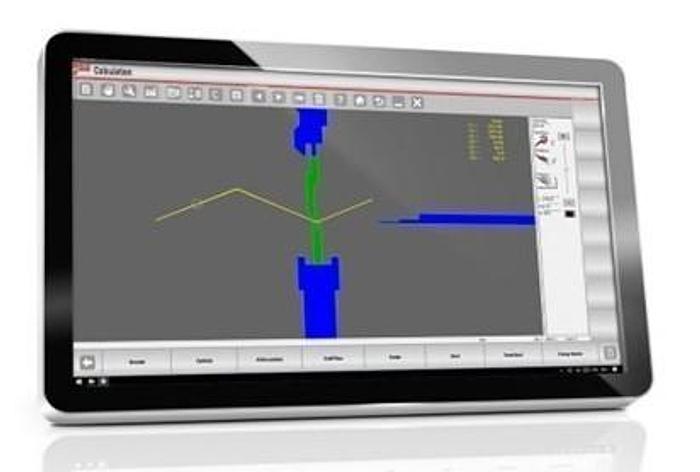

The Servo Electric Press Brake comes with an advanced CNC controller, fast and accurate punch and die clamping, and a multi-axis back gauge system. Operators can easily produce perfect sheet metal parts at very low cost.
Manufacturer | DENER |
---|---|
Model | DENER DDM 80-25 Servo electric Press Brake |
Capacity: | 88 US Tons / 80 Metric Tons |
Approach Speed (Max): | 3.5 IPS / 90 mm/s |
Ram Repeatability: | ±0.0004 in / ±0.01 mm |
Bend Speed (Max): | 0.78 IPS / 20 mm/s |
Return Speed (Max): | 3.5 IPS / 90 mm/s |
Punch Holder Height: | 4.72 in / 120 mm |
Back Gauge Speed: | 39 IPS / 1000 mm/s |
Back Gauge Repeat Accuracy: | 0.002 in / 0.05 mm |
Back Gauge X Travel: | 26.5 in / 750 mm |
Max Back Gauge Position: | 40 in / 1015 mm |
R Axis Travel: | 5.9 in / 150 mm |
Bending Length: | 100.4 in / 2550 mm |
Distance Between Frames: | 100.4 in / 2550 mm |
Ram Stroke: | 11.81 in / 300 mm |
Daylight (without punch holders): | 9.0 in / 660 mm |
Table Height: | 36.22 in / 920 mm |
Table Width | 3.74 in / 95 mm |
Weight: | 14,420 lbs / 6100 kg |
Main Motor: | 14.75 HP / 11 kW |
